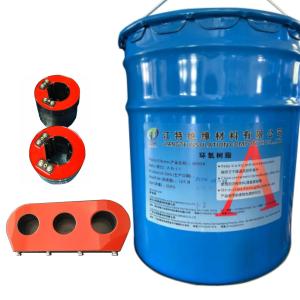

JT2252 Vacuum Casting Process for Instrument Transformer

Name: JT2252 Vacuum Casting Process for Instrument Transformer
Brand: JT-RESIN
Price: 3 USD

Quality JT2252 Vacuum Casting Process for Instrument Transformer for sale

Brand Name : JT-RESIN

Model Number : JT2252

Certification : SGS，CE,UL

Place of Origin : China

MOQ : 5000kg

Price : $3/kg

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200Ton/week

Delivery Time : 5 days

Packaging Details : DRUM

Usage : casting insulation parts and high thermal shock resista

CAS No. : 1675-54-3

MF : C21H24O4

TG : 100

Adhesion Strength : High

Appearance : Transparent liquid

Chemical Resistance : High

Compressive Strength : High

Corrosion Resistance : High

Curing Temperature : Low

Curing Time : Fast

Flexural Strength : High

Heat Resistance : High

Product Name : Injection Epoxy Resin

Shear Strength : High

Solid Content : High

Tensile Strength : High

Contact Now

Wholesale casting resin and liquid epoxy resin (NPEL_9225) and Electrical insulation epoxy resin for molds and transform

Product Description

Indoor electrical insulation parts for medium and high voltage equipment ,such as switchgears and electrical components.Encapsulation of large metal parts.Recommended for application with long term stresses up to service temperature of 85℃.

Liquid ,hot-curing casting resin system with high glass transition temperature for producing casting insulation parts with excellent mechanical end-properties and very high thermal shock resistance.

Epoxy resin	JT2252A	100pbw
Hardener	JT2252B	100pbw
Filler	Silica flour	340-380pbw
Color paste	JT009	3pbw

JT2252 Vacuum Casting Process for Instrument Transformer

Vacuum casting process of instrument transformer

Resin model:

Resin/ Hardener / Silica powder = XXX : XXX : XXX (pbw)

1) Material Pouring:

JT2252 Vacuum Casting Process for Instrument Transformer

2) Curing

Initial Gelatin:8h@80 °C + 2h@100 °C+ 6h@130°C；

Demould:Act slightly, try to shorten the demould time, after demoulding, put the casting parts into the oven within 5minutes, and cooling with the furnace

Taking out of furnace:cooling to below 40 °C before taking casting parts out of furnace

3) Remark

This process is for reference only, the exact one should be adjusted as per the casting parts and casting equipment.

JT2252 Vacuum Casting Process for Instrument Transformer
